Air Conditioner AC Compressor Clutch Kit for BMW X5 228i 328d 328i 428i 740Ld 428i Gan Coupe AC Compressor Clutch Set for 7SBU17C Compressor for BMW 320i XDrive No.64529216466
$52.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by lesbaroudeurs.telecomnancy.net
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$52.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by lesbaroudeurs.telecomnancy.net
Free 30-day returns Details
Product details
| Management number | 208070662 | Release Date | 2026/03/22 | List Price | $21.20 | Model Number | 208070662 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Fitment] for BMW 228i 328d 535d 428i 2014-2016, for BMW 328d/428i/535d xDrive 2014-2016, for BMW 320i/320i xDrive 2013-2018, for BMW 535i/535i GT/GT xDrive 2016, for BMW 228i xDrive 2015-2016, for BMW 428i xDrive/Gran Coupe 2015-2016, for BMW 328i 528i/528i xDrive 2012-2016, for BMW 328i GT xDrive 2014-2016, for BMW 328i xDrive 2013-2016, for BMW 740Ld xDrive 2015, for BMW X5 2014-2015 2017-2018. OE Number:64529216466/64529330825/197364/198364/6513115/140987C/7513115.
- [Function& Specification] Compressor Style: for 7SBU17C, Pulley Groove Quantity: 6, Voltage: 12V, Pin: 1 Pin, Pulley Diameter (MM): 110. Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow. Air conditioning compressor clutch can solve the clutch stop rotating, not meshing noise, leakage, engine overload and other problems.
- [Reliable Quality] Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off. Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft. Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch. Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.

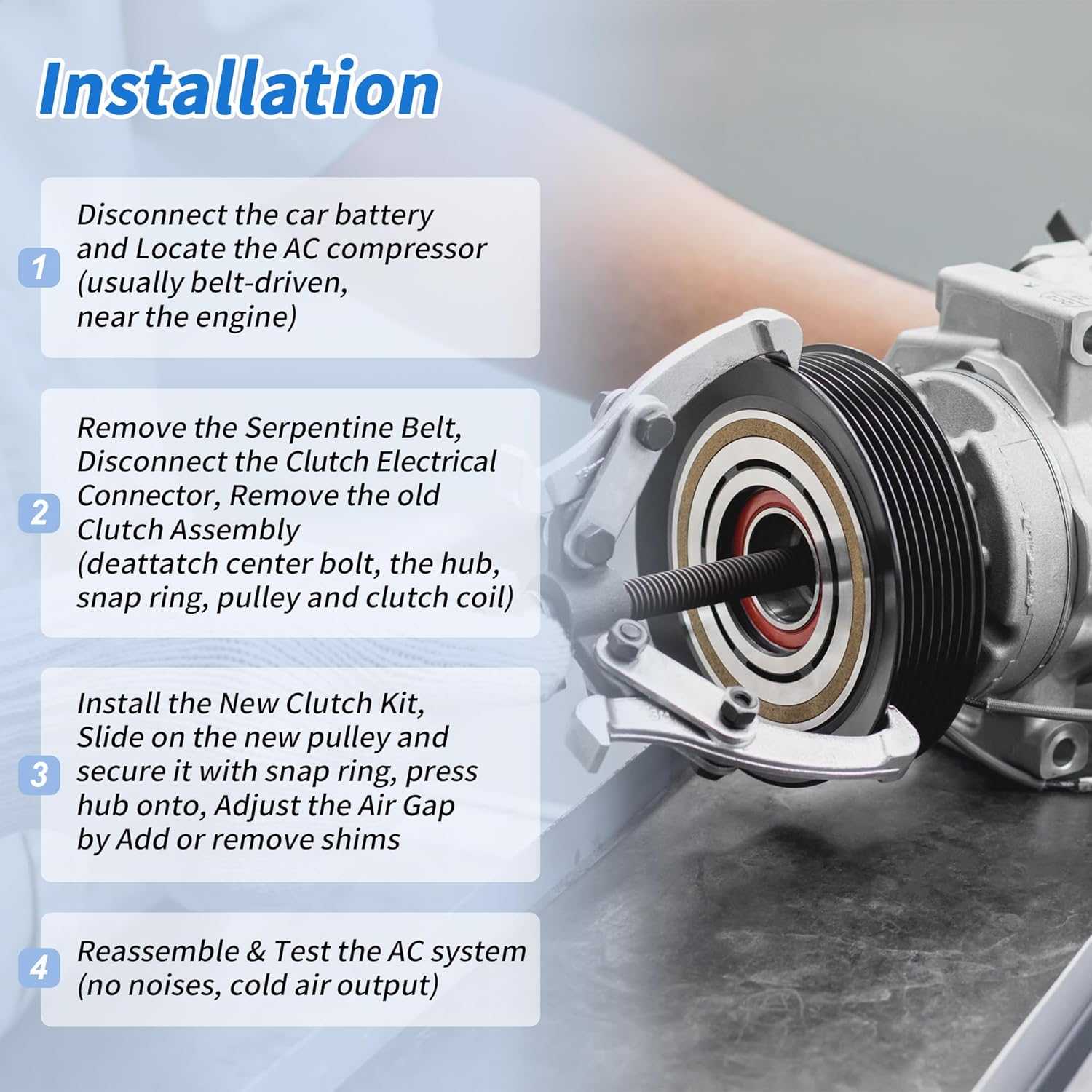

- [Installation] 1. Disconnect the car battery and Locate the AC compressor (usually belt-driven, near the engine). 2. Remove the Serpentine Belt, Disconnect the Clutch Electrical Connector, Remove the old Clutch Assembly( deattatch center bolt, the hub, snap ring, pulley and clutch coil). 3. Install the New Clutch Kit, Slide on the new pulley and secure it with snap ring, press hub onto, Adjust the Air Gap by Add or remove shims.4. Reassemble & Test the AC system(no noises, cold air output).

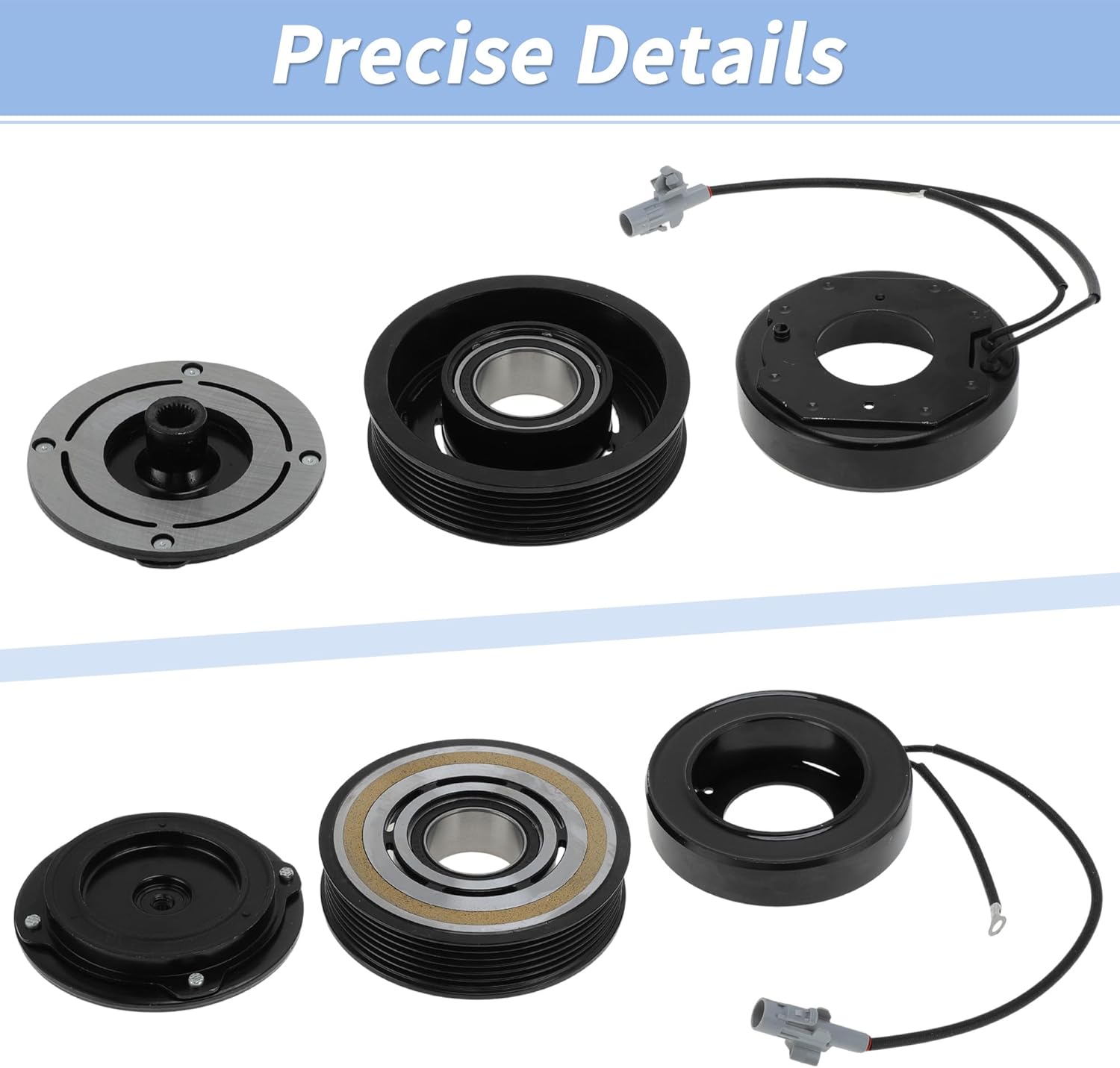

- [Package] Included 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 2x Snap Rings, 2x Spacer, 1x Bolt. Please replace AC Clutch if met: Worn-out clutch bearing, Damaged coil or electrical failure, Physical wear on the hub or pulley, AC compressor not engaging properly.
| Brand | FUELHOOD |
|---|---|
| Model | AC Compressor Clutch Kit |
| Exterior | Machined |
| Position | Inner |
| Item Weight | 4.23 pounds |
| Manufacturer | FUELHOOD |
| Item model number | 64529216466/64529330825 |
| Package Dimensions | 6.1 x 5.51 x 2.56 inches |
| Manufacturer Part Number | hooda001980250626 |
