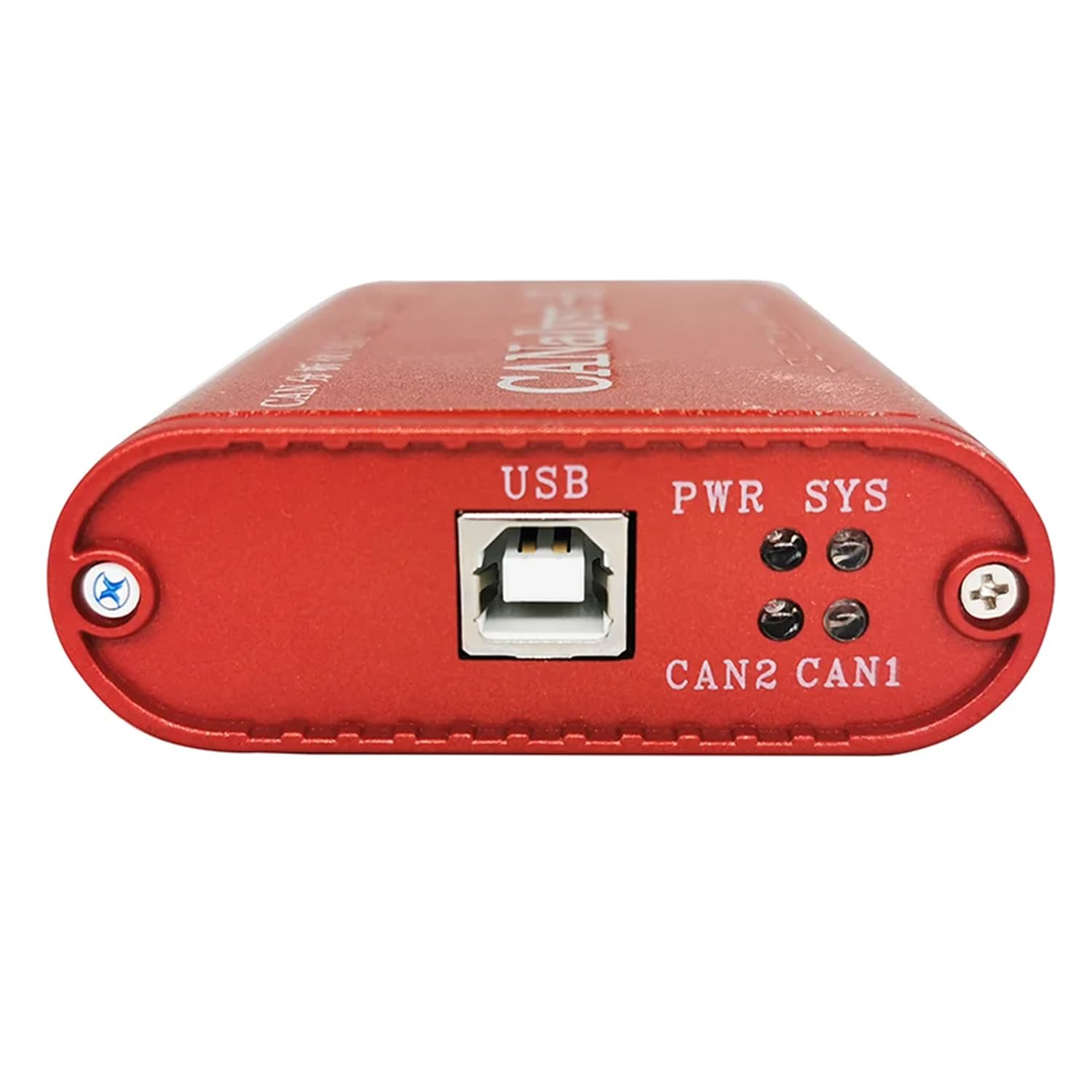

Dual-Channel Isolated CAN Bus Analyzer

CANalyst-II analyzer is a CAN-bus adapter with a USB2.0 interface and 2 CAN interfaces and has a CAN-bus protocol analysis function that supports SAE J1939, DeviceNet, CANopen, iCAN, and customized advanced protocol analysis function, also It is compatible with ZLG CANPro software and Can carry out bidirectional transmission. CAN channel: 2 CAN interface: CAN 2.0A, 2.0B, conform to ISO 11898-2 CAN baud rate: 5k~1Mbps CAN connector: Open6 terminal block USB interface: USB 2.0 Receive maximum: 8500fps Isolation: DC 2500V Shell material: Aluminum alloyTypical applications Transmit or receive messages in the CAN-bus network via PC or laptop's USB; Data collection, and data analysis in the fast CAN network; CAN-bus-USB gateway; USB interface to CAN network interface; Extend CAN-bus line length; Industrial site CAN network data monitoring.

• USB, CAN1, and CAN2 are completely isolated. CAN-bus circuit adopts high-speed magnetic lotus root isolation and Independent isolated DC-DC power supply modules, USB, CAN1, and CAN2 are completely isolated
• Dual-channel intelligent CAN interface module.
• Support protocol conversion between USB and CAN-bus.
• Adopt electrical isolation, the isolation voltage is 2500V.
• Max data flow: more than 8000 fps (standard frame) for receiving and 8000 fps (standard frame) for transmitting and can be run at the same time. Buffer size: 1000 frames length buffer for transmission (with auto repeat transmission when failed) per channel, 2000 frames length buffer for receiving per channel.
