Rampa Socket Type TSM M6x40 for Concrete and Masonry - Screw-in Sleeves with Hexagonal Socket Drive TX50, ETA-23/0542, Galvanised Steel - Pack of 10

Strong joints for concrete and masonry. RAMPA sleeves type TSM with a hexagonal socket drive allow easy and safe installation in concrete using tangential screwdriver. The sleeves type TSM offer a secure hold thanks to their special thread contour, as well as high loads at low edge spacings and can be processed flush with the surface. Rampa type TSM sleeves are approved for concrete strength classes from C20/25 to C50/60 and are suitable for both cracked and uncracked concrete as well as for masonry, aerated concrete and wood. Made from high quality galvanised steel, they provide a durable and robust fixing. The internal thread sizes M6, M8 and M10 ensure flexible applications and maximum safety in your projects. Rampa boots type TSM have the European technical approval ETA-23/0542, which underlines their quality and reliability. Ideal for: non-cracked concrete, cracked concrete, masonry. Product advantages: extremely stable, easy to use, quick and uncomplicated, versatile, perfect for any construction project. Simple, quick and safe assembly/disassembly, especially for overhead work, clean mounting image without annoying elements, special thread geometry for secure hold and high loads in concrete, metric internal thread for a wide range of applications, low edge spacing for more flexibility with rating ET. A-23/0542 Application: Create drill hole with hammer drill or hollow drill. Thoroughly clean the boreScrew in RAMPA boots type TSM with tangential screwdriver or ratchet. Screw must be screwed flush with the concrete. The attachment is attached with a standard metric screw or threaded stage. Attention should be paid to the tightening torque of the metric thread. Material: steel surface: galvanised L (mm): 40 type: TSM brand: Rampa outer diameter (mm): 10.5 L1 (mm): 8 thread: M6 drive (mm): TX50 head diameter (mm): 11 for bore diameter: 8 content specification (ST): 10

• Use: Rampa sleeves for easy, flush mounting in concrete, masonry or wood - perfect for demanding projects with high stability
• Advantages: high load values thanks to special thread shape, low edge spacing and easy disassembly - the attachment can be attached with a standard metric screw or threaded rod

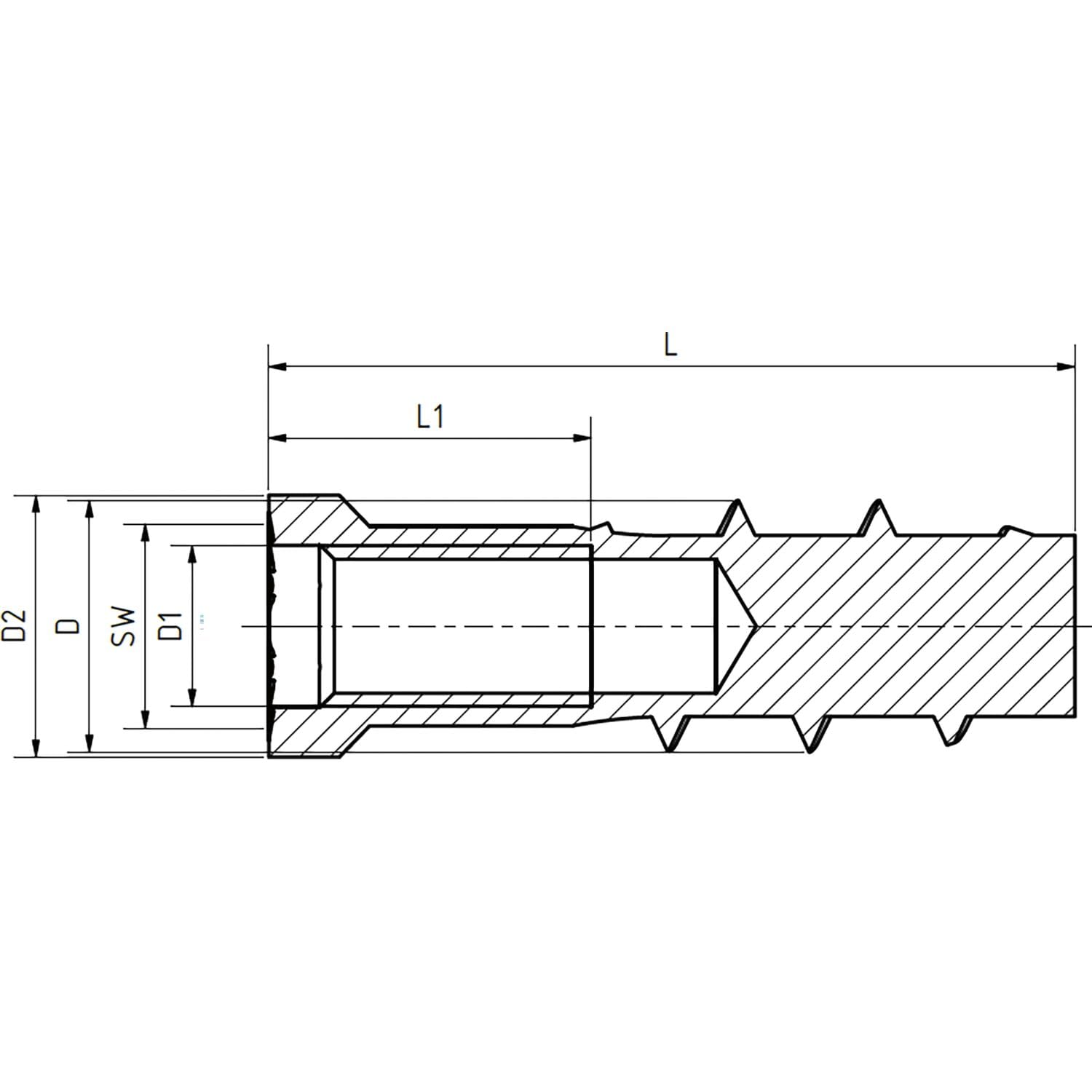

• Specifications: thread: M6, outer diameter: 10.5 mm, head diameter: 11 mm, drill diameter: 8 mm, length: 40 mm, inner thread length: 8 mm, drive: TX50
• Box contents: 10 pieces Rampa sleeves type TSM with hexagonal socket, galvanised steel
